| 产品特性：支撑 | 品牌：C-FLEX | 型号：HD-30 |
| 外径：0.6mm | 内径：0.11mm | 厚度：1mm |
| 用途：轧钢机 | 重量：0.01kg | 润滑剂：油润滑 |
| 油润滑方法：滴油润滑 | 是否跨境货源：否 | 系列：HD系列 |
进口轴承，

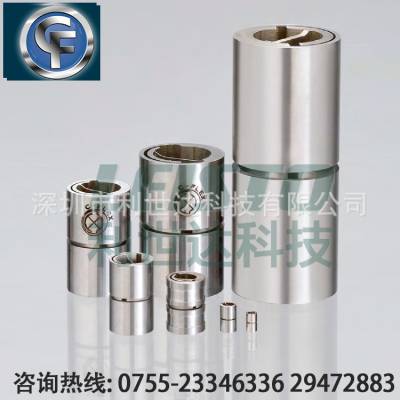

C-FLEX轴承，cflex轴承，H-10 20 30轴承，进口磨床轴承。
挠性轴承，十字轴承，弯曲轴承，角度轴承，柔性铰链 C-Flex pivot bearing,Single end bearing
由于数量多少，价格相差很大，欢迎咨询。
WALDRICH磨床备件号：7-0502494 5/8 DIA 15.88X25.4
12.8630.00851 测量设备 7.0502494 自由弯曲枢轴5020/600(5020-600) 5/8" Dia. 15.88X25.4
单位（Inch,Lb,Lb-In/Degree)
示例：
HD-10中间弹片厚度0.007in=0.173mm
HD-20中间弹片厚度0.014in=0.345mm
HD-30中间弹片厚度0.027in=0.691mm
Product Codes:All the Single End Bearings from C-flex company
Dia. | 1/8 | 5/32 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 | 5/8 | 3/4 | 1 |
10系列 | AD-10 | BD-10 | CD-10 | DD-10 | ED-10 | FD-10 | GD-10 | HD-10 | ID-10 | JD-10 |
20系列 | AD-20 | BD-20 | CD-20 | DD-20 | ED-20 | FD-20 | GD-20 | HD-20 | ID-20 | JD-20 |
30系列 | AD-30 | BD-30 | CD-30 | DD-30 | ED-30 | FD-30 | GD-30 | HD-30 | ID-30 | JD-30 |
C-Flex Bearings |
(1) Torsional Spring rates: Lb-In/Degree rates of standard C-Flex bearings generally fall within +/-10% of these values at zero load. Contact C-Flex if specific spring rates or closer tolerances are required. |
(2) Load Capacity: Lt or Lc (Pounds load in tension or compression) These values are maximum loading (weight or static force) at zero deflection. Load requirements, angular deflection and cyclic life must be considered when sizing bearings. Lc is pure radial load creating compressive stresses in the spring, while Lt is a pure radial load creating tensile stresses. |
1Lb-In/Degree=6.474 Nm/rad
WALDRICH磨床备件号：7-0502494 5/8 DIA 15.88X25.4
12.8630.00851 测量设备 7.0502494 自由弯曲枢轴5020/600(5020-600) 5/8" Dia. 15.88X25.4
